Part Number:
90-MXBQV-A0UAYZ

Chipset:
B860

Memória:
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel^® Extreme Memory Profile (XMP) 3.0x

Processador:
Intel LGA 1851 ( Intel 15ª Geração )
Intel® Core™ Ultra Processors (Series 2)

Slots:
Intel® Core™ Ultra Processors (Series 2)
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Intel® B860 Chipset
1x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode

Armazenamento:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)*
1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Intel® B860 Chipset
1x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
4x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Rede:
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2×2 with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3
Supports MU-MIMO

Áudio:
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

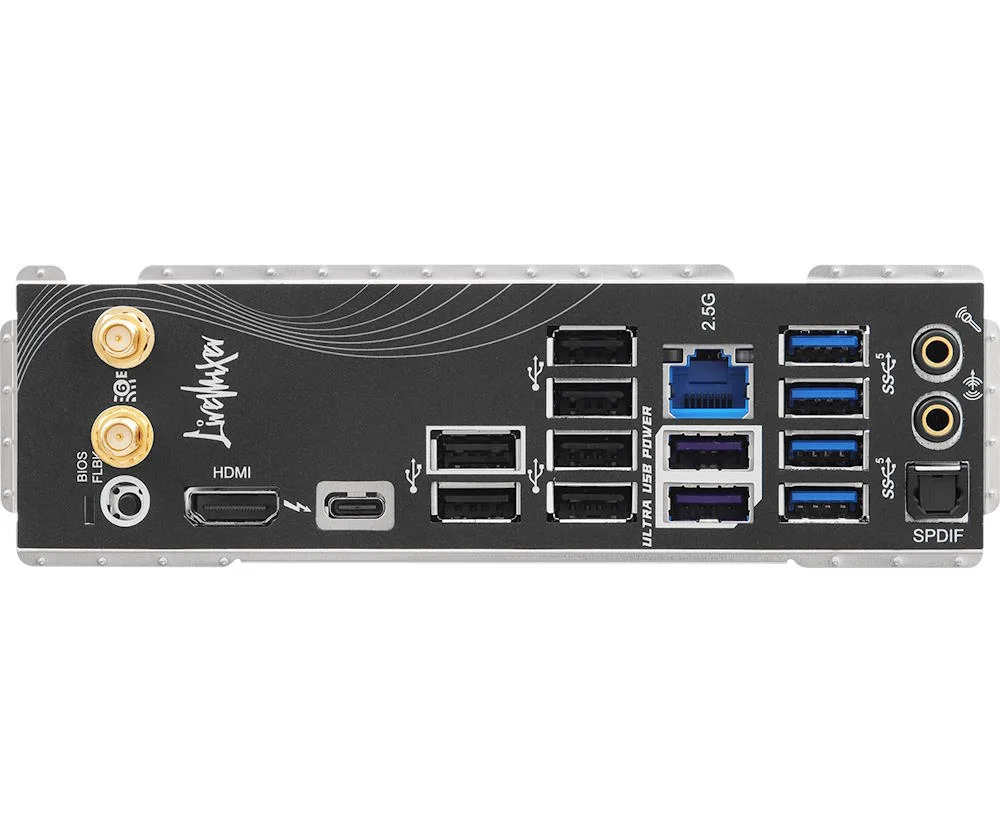

Input / Output:
2x Antenna Ports
1x HDMI Port
1x Optical SPDIF Out Port
1x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)
6x USB 3.2 Gen1 Ports
6x USB 2.0 Ports
1x RJ-45 LAN Port
1x BIOS Flashback Button
1x Line Out Jack (Gold Audio Jack)
1x Microphone Input Jack (Gold Audio Jack)

Dimensões:
ATX ( 30.5 cm x 24.4 cm )
