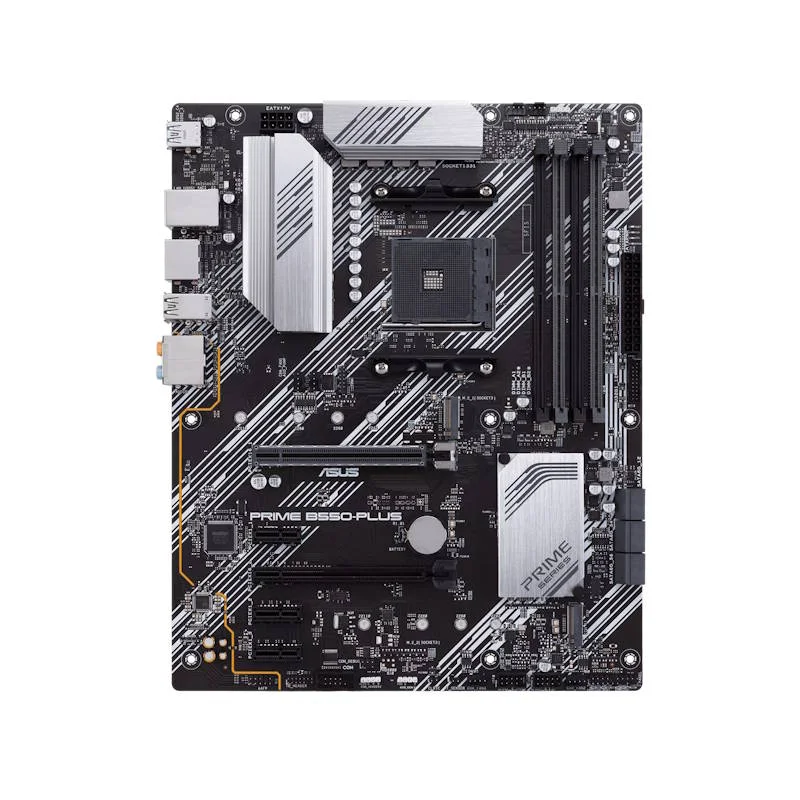

Part Number:
90MB14U0-M0EAY0

Chipset:
AMD B550

Memória:
AMD RyzenTM 4000 G-Series Processor,4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *,4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory,Dual Channel Memory Architecture

Processador:
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors

Slots:
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors,* Support PCIe bifurcation for RAID on CPU function.
AMD B550 Chipset,1 x PCIe 3.0 x16 (x4 mode),3 x PCIe 3.0 x1,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode)

Armazenamento:
AMD RyzenTM 4000 G-Series Processor :
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports,6 x SATA 6Gb/s port(s), *2,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2,Support Raid 0, 1, 10

Rede:
1x Ethernet Realtek RTL8111H
Asus LANGuard

Áudio:
Realtek® ALC8877 Codec
7.1-Channel High Performance Audio

Formato:
ATX ( 30.5 cm x 24.4 cm )

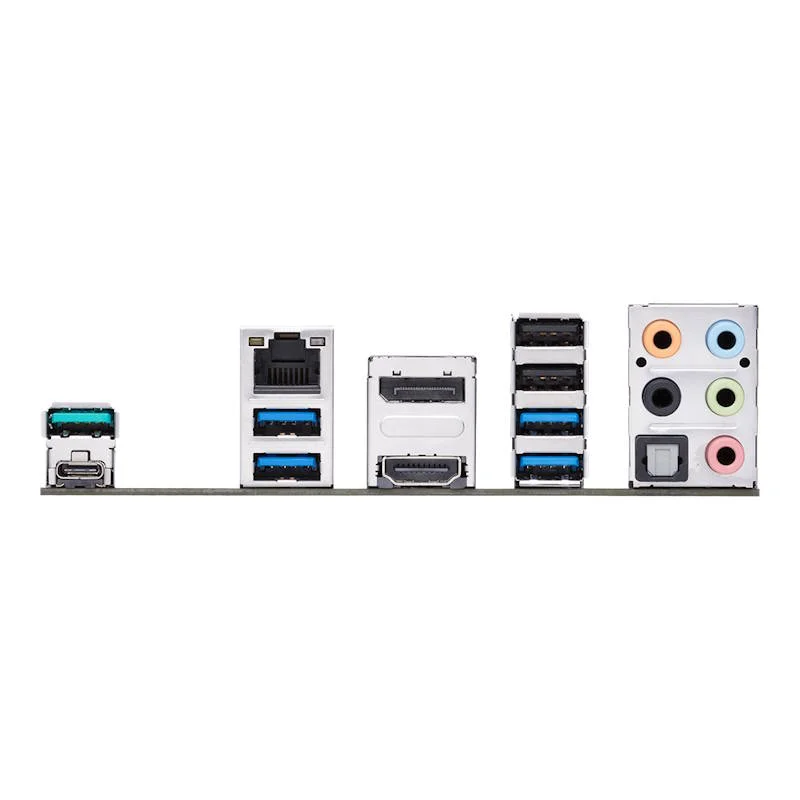

Input / Output:
2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4x USB 3.2 Gen 1 (blue) Type-A
1x DisplayPort
1x HDMI
1x LAN (RJ45) port(s)
2x USB 2.0
1x Optical S/PDIF out
5 x Audio jack(s)
