Part Number:
90MB1JY0-M0EAY0

Chipset:
B860

Memória:
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Supports up to 8666+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)

Processador:
Intel LGA 1851 ( Intel 15ª Geração )
Intel® Core™ Ultra Processors (Series 2)

Slots:
Intel® Core™ Ultra Processors (Series 2)
1x PCIe 5.0 x16 slot
Intel® B860 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)
1x PCIe 4.0 x1 slot

Armazenamento:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Rede:
1x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

Áudio:
Realtek 7.1 Surround Sound High Definition Audio CODEC

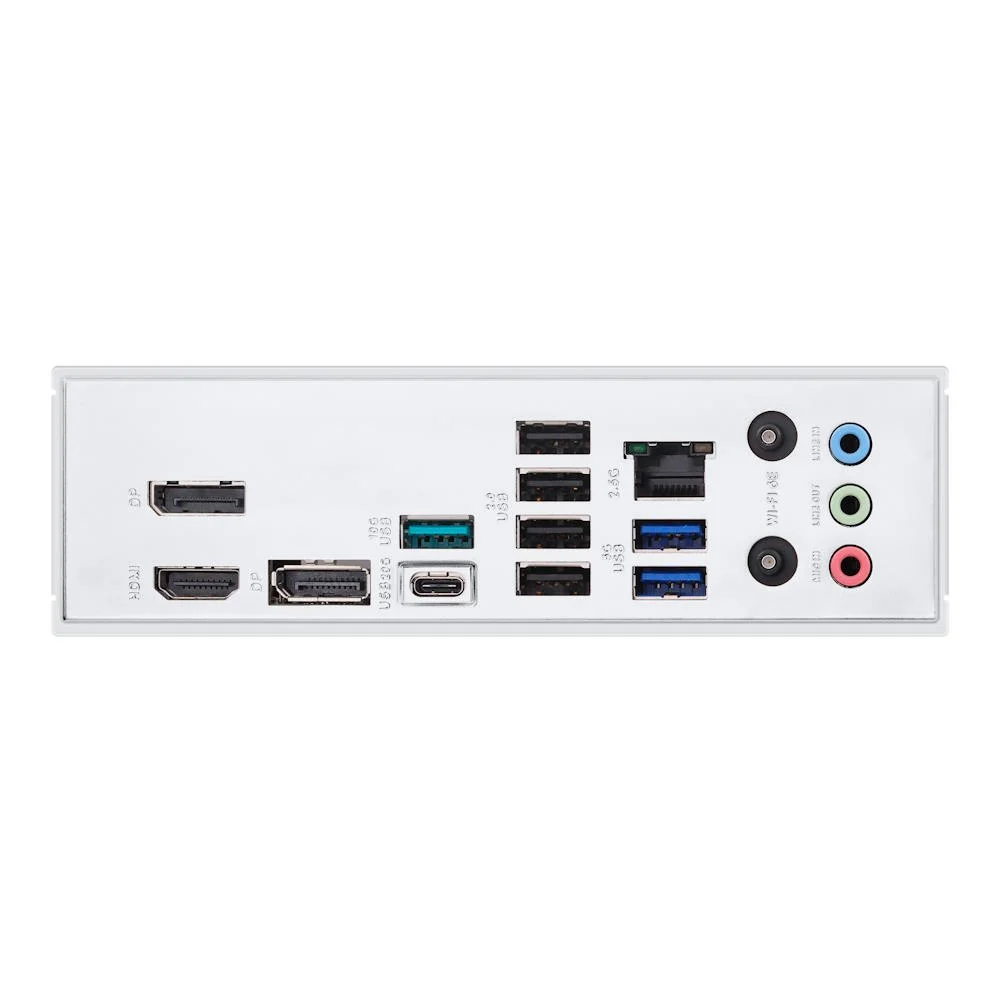

Input / Output:
1x USB 20Gbps port (1 x USB Type-C®)
1x USB 10Gbps port (1 x Type-A)
2x USB 5Gbps ports (2 x Type-A)
4x USB 2.0 ports (4 x Type-A )
2x DisplayPort
1x HDMI port
1x Wi-Fi module
1x Realtek 2.5Gb Ethernet port
3x Audio jacks

Dimensões:
mATX ( 24.4 cm x 24.4 cm )
