Part Number:
90MB1I70-M0EAY0

Chipset:
Z890

Memória:
4x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)

Processador:
Intel LGA 1851 ( Intel 15ª Geração )
Intel® Core™ Ultra Processors (Series 2)

Slots:
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)

Armazenamento:
Total supports 4x M.2 slots and 4x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Rede:
1x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4

Áudio:
Realtek 7.1 Surround Sound High Definition Audio CODEC

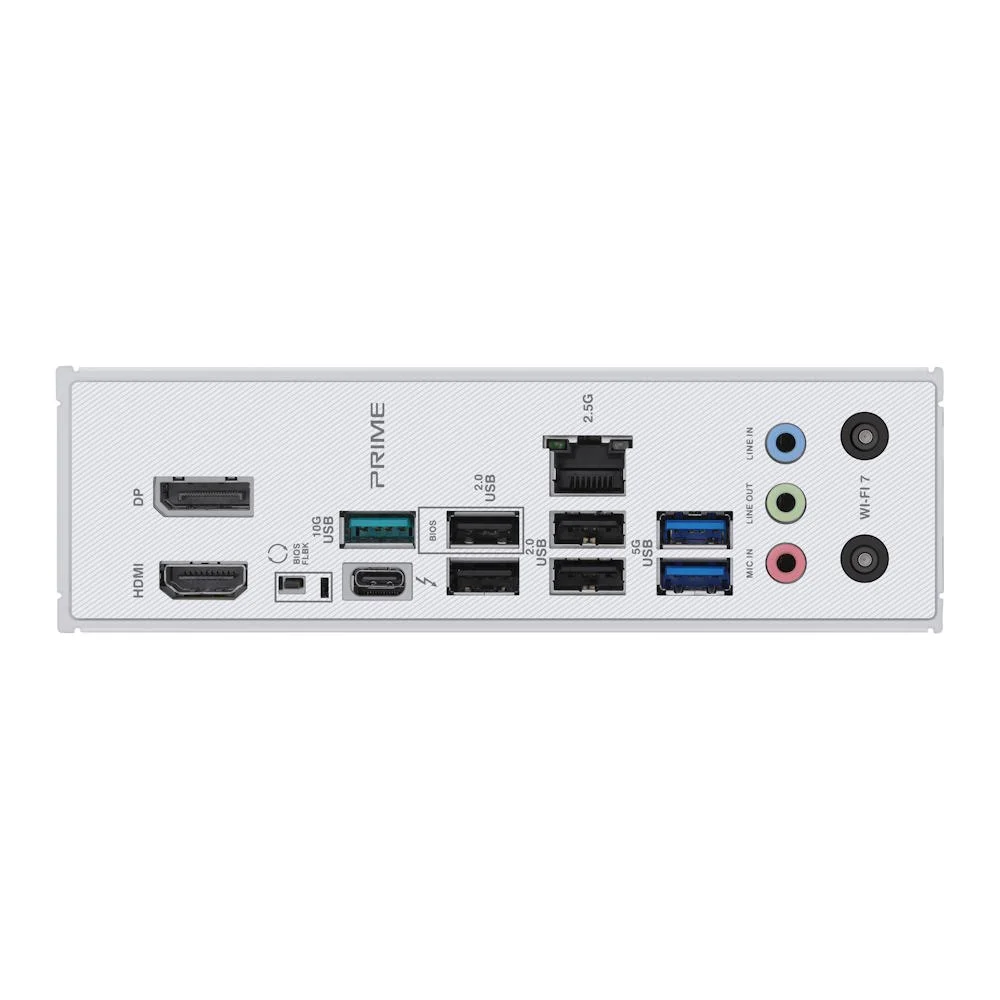

Input / Output:
1x Thunderbolt™ 4 USB Type-C® port
1x USB 10Gbps port (1 x Type-A)
2x USB 5Gbps ports (2 x Type-A)
4x USB 2.0 ports (4 x Type-A)
1x DisplayPort
1x HDMI port
1x Wi-Fi module
1x Realtek 2.5Gb Ethernet port
3x Audio jacks
1x BIOS FlashBack button

Dimensões:
ATX ( 30.5 cm x 24.4 cm )
