Part Number:
90MB1ID0-M0EAY0

Chipset:
Z890

Memória:
4x DIMM slots, max. 256GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)

Processador:
Intel LGA 1851 ( Intel 15ª Geração )
Intel® Core™ Ultra Processors (Series 2)

Slots:
Intel® Core™ Ultra Processors (Series 2)*
1x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel® Z890 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)
1x PCIe 4.0 x1 slot

Armazenamento:
Supports up to 6x M.2 slots and 1x SlimSAS connector and 4x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an adapter cable. The cable is purchased separately.
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.

Rede:
1x Intel® 2.5Gb Ethernet
1x Realtek 5Gb Ethernet
ASUS LANGuard
Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4

Áudio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Impedance sense for front and rear headphone outputs
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
Supports up to 32-Bit/384 kHz playback on front panel

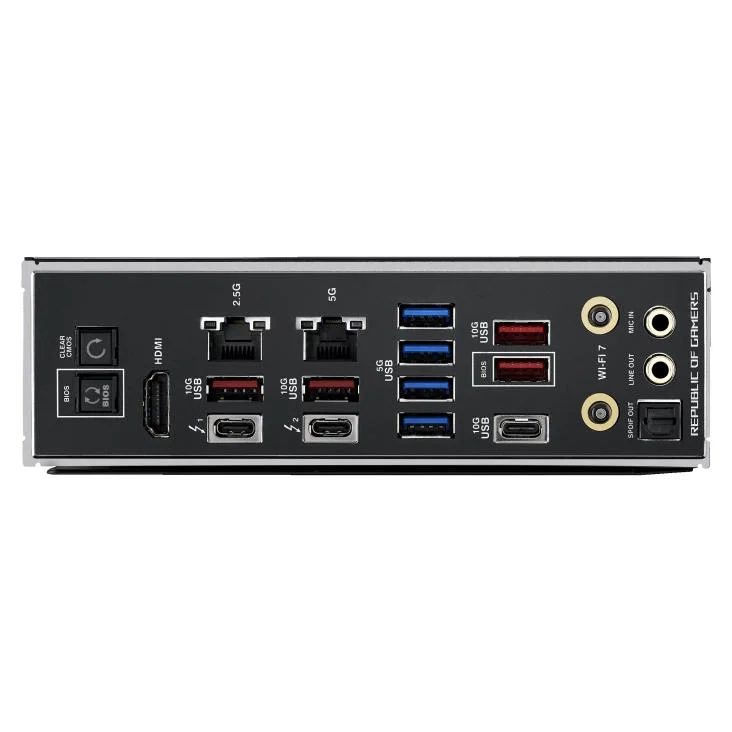

Input / Output:
2x Thunderbolt™ 4 USB Type-C® ports
5x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4x USB 5Gbps ports (4 x Type-A)
1x HDMI™ port
1x Wi-Fi module
1x Intel® 2.5Gb Ethernet port
1x Realtek 5Gb Ethernet port
2x Gold-plated audio jacks
1x Optical S/PDIF out port
1x BIOS FlashBack™ button
1x Clear CMOS button

Dimensões:
ATX ( 30.5 cm x 24.4 cm )
