Part Number:
90MB19Y0-M0EAY0

Chipset:
AMD B550

Memória:
4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *,ECC Memory (ECC mode) support varies by CPU.,Dual Channel Memory Architecture

Processador:
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors

Slots:
Processadores Desktop AMD Série Ryzen™ 5000 / 3000
1x PCIe 4.0 x16 (modo x16)
Processador AMD Ryzen™ da Série 4000 G
1x PCIe 3.0 x16 (modo x16)
Chipset AMD® B550
1x PCIe 3.0 x16 (modo x4)
3x PCIe 3.0 x1

Armazenamento:
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors : ,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : ,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support,Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports,AMD B550 Chipset : ,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

Rede:
1x Ethernet Realtek RTL8125B 2.5Gb
TUF LANGuard
Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

Áudio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers
Audio cover

Formato:
mATX ( 24.4 cm x 24.4 cm )

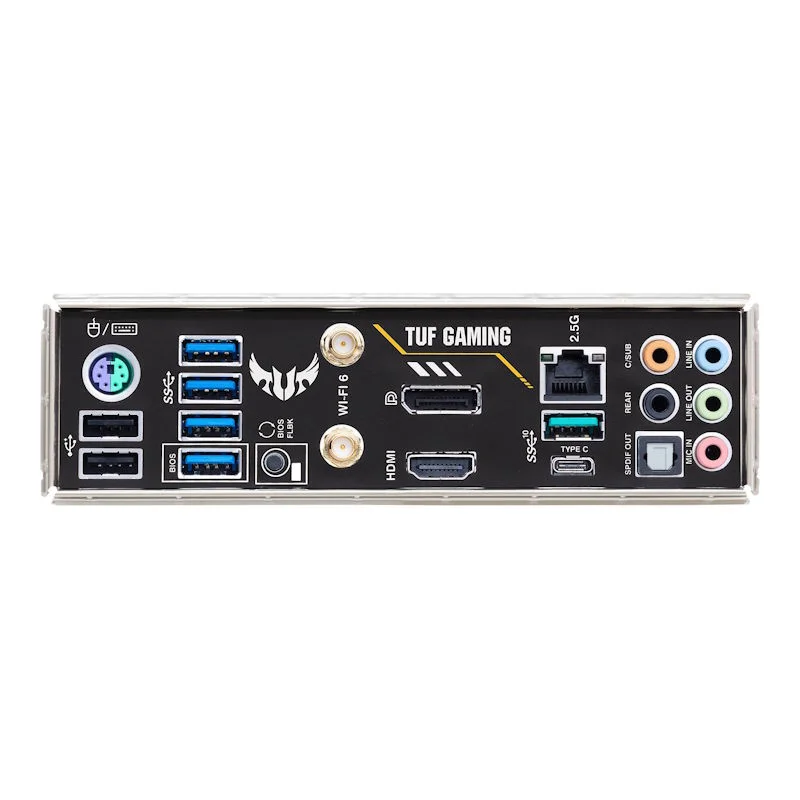

Input / Output:
2x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)
2x USB 2.0 ports (2 x Type-A)
1x DisplayPort
1x HDMI® port
1x Wi-Fi Module
1x Realtek 2.5Gb Ethernet port
5x Audio jacks
1x Optical S/PDIF out port
1x BIOS FlashBack™ button
1x PS/2 Keyboard/Mouse combo port
