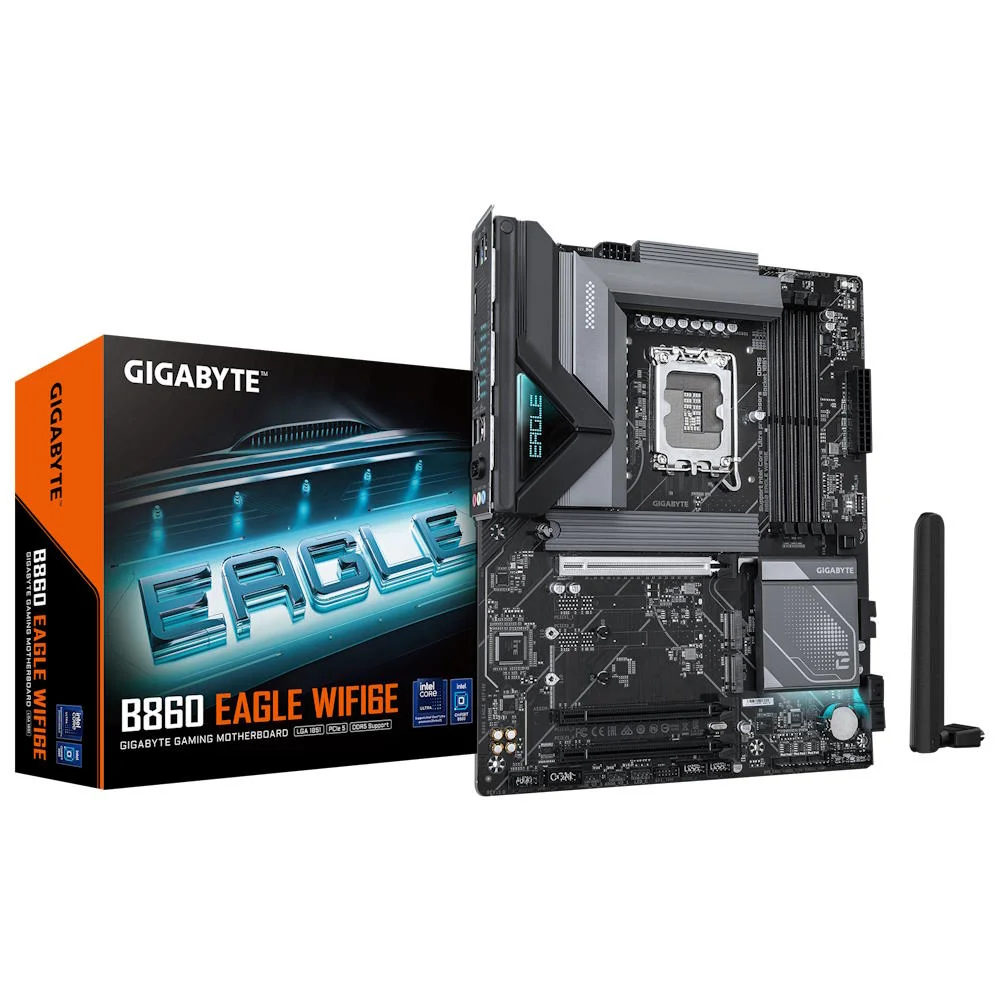

Part Number:
9MB86EGW6-00-G10

Chipset:
B860

Memória:
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Processador:
Intel LGA 1851 ( Intel 15ª Geração )
Intel® Core™ Ultra Processors (Series 2)

Slots:
1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)

Armazenamento:
CPU:
1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0×4/x2 SSD support) (M2A_CPU)
Chipset:
1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2Q_SB)
1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2P_SB)
4x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Rede:
1x Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard

Áudio:
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

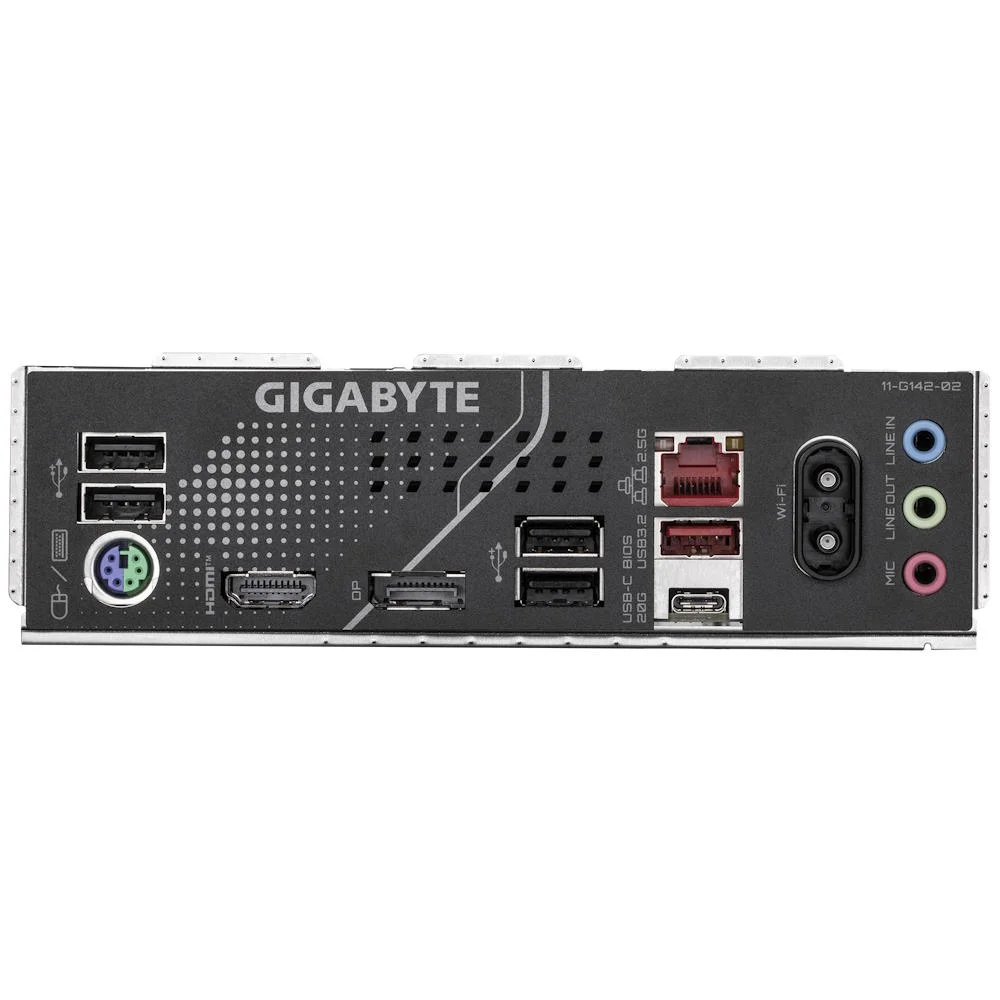

Input / Output:
1x PS/2 keyboard/mouse port
1x HDMI port
1x DisplayPort
1x USB Type-C® port, with USB 3.2 Gen 2×2 support
1x USB 3.2 Gen 2 Type-A port (red)
4x USB 2.0/1.1 ports
2x antenna connectors (2T2R)
1x RJ-45 port
3x audio jacks

Dimensões:
ATX ( 30.5 cm x 24.4 cm )
