Part Number:
9MZ89EL7-00-10

Chipset:
Z890

Memória:
Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module

Processador:
Intel LGA 1851 ( Intel 15ª Geração )
Intel® Core™ Ultra Processors (Series 2)

Slots:
1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Armazenamento:
CPU:
1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
4x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Rede:
1x Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard

Áudio:
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Input / Output:
1x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
2x USB 3.2 Gen 2 Type-A ports (red)
3x USB 3.2 Gen 1 ports
4x USB 2.0/1.1 ports

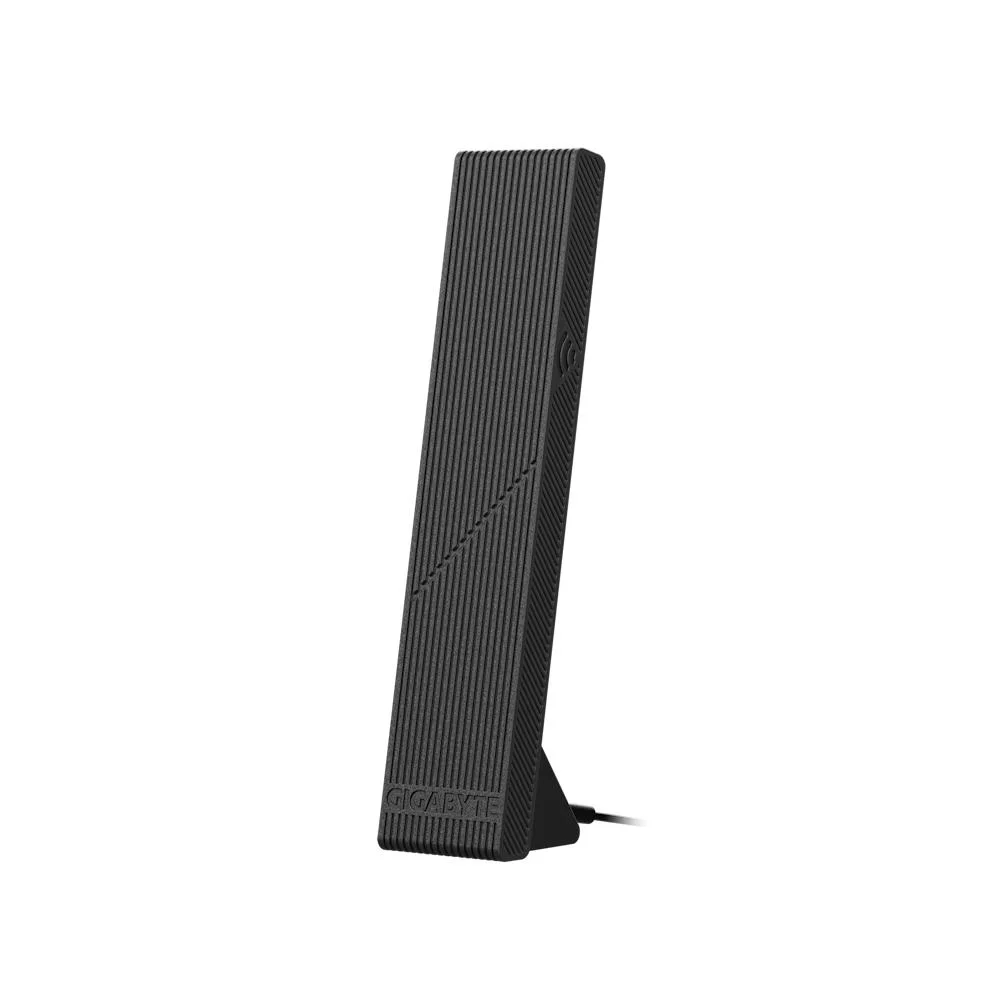

2x antenna connectors (2T2R)
1x DisplayPort
1x RJ-45 port
1x optical S/PDIF Out connector
2x audio jacks

Dimensões:
ATX ( 30.5 cm x 24.4 cm )
