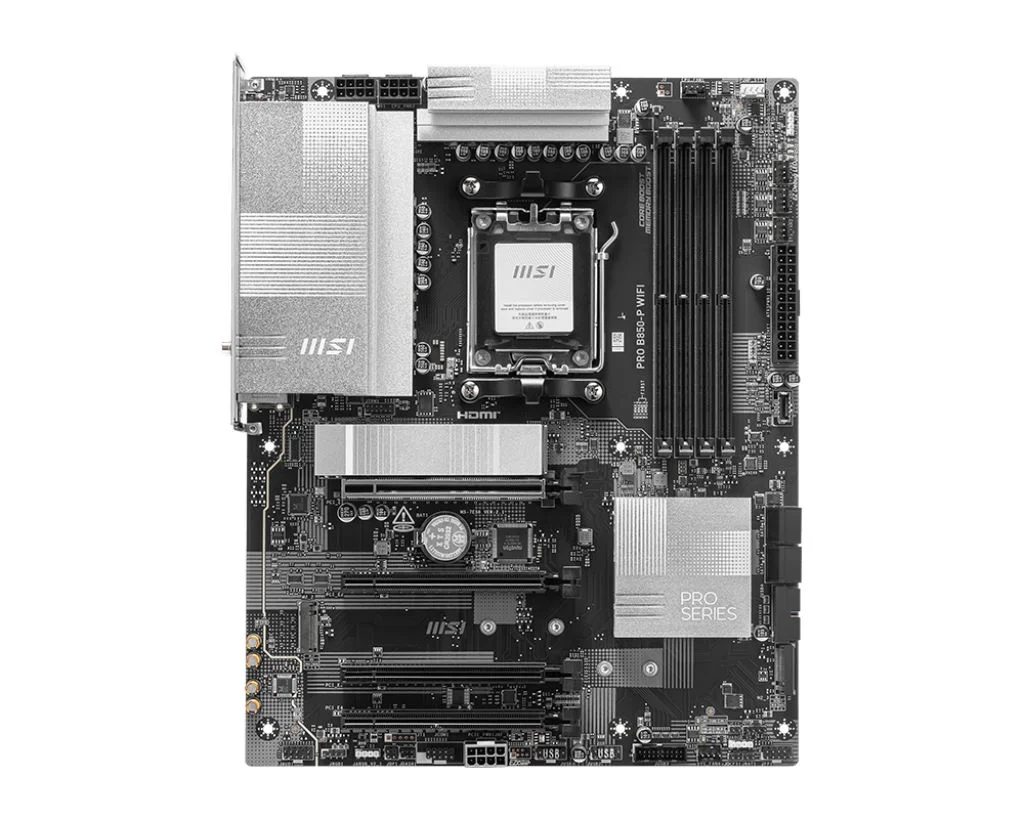

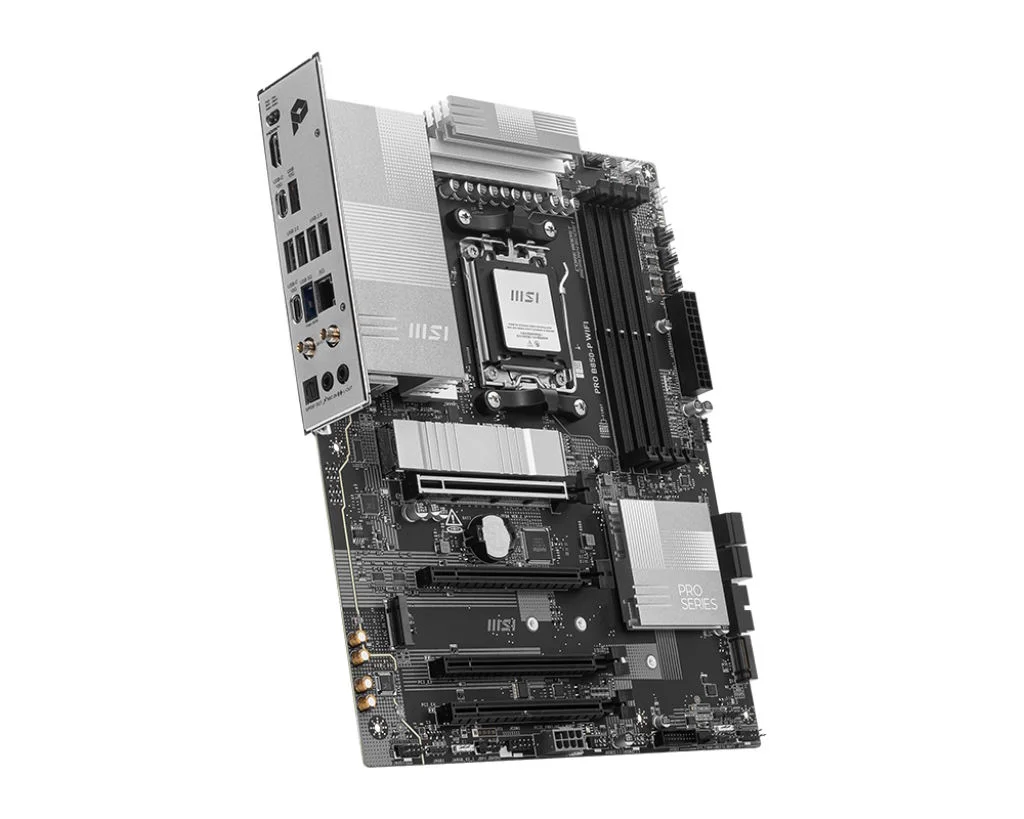

Part Number:
911-7E56-06S

Chipset:
AMD B850

Memória:
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

Processador:
Socket AM5, Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Slots:
4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Armazenamento:
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Rede:
1x Realtek® 8126VB 5G LAN
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4, MLO, 4KQAM

Áudio:
Realtek® ALC897
7.1-Channel High Definition Audio

Formato:
ATX ( 243.84 mm x 304.8 mm )

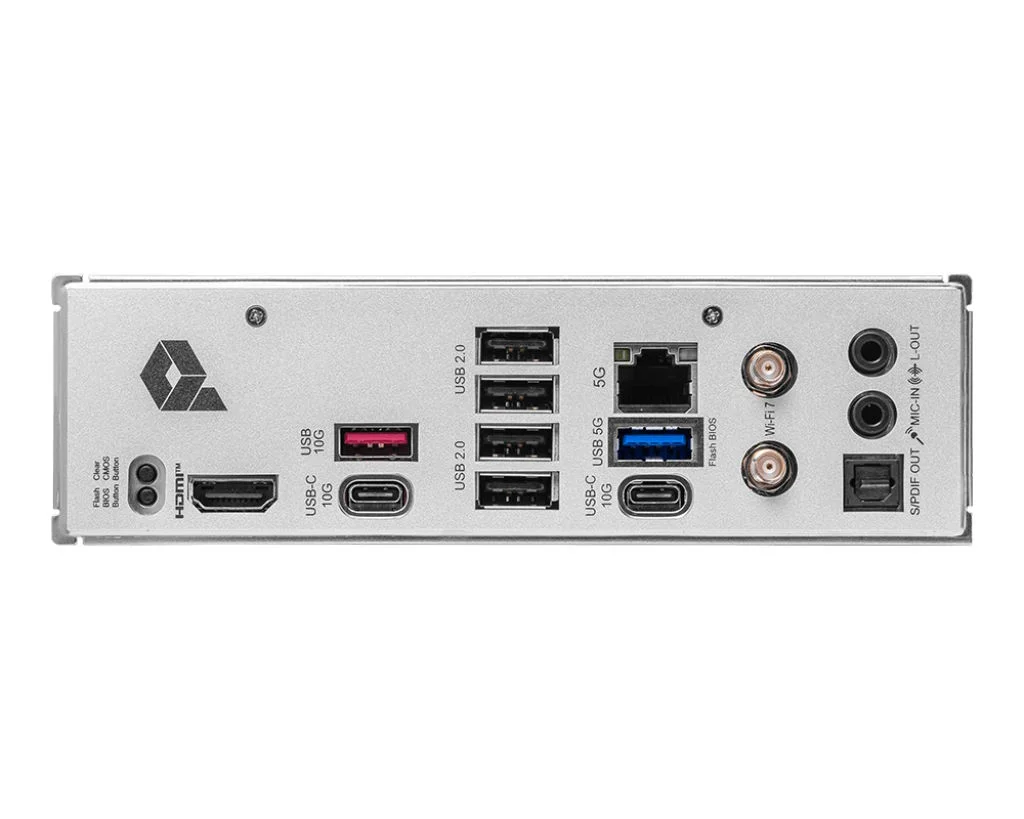

Input / Output:
1x Clear CMOS Button
1x USB 10Gbps Type-A
4x USB 2.0
1x 5G LAN
2x Wi-Fi / Bluetooth
2x Audio connectors
1x Flash BIOS Button
1x HDMI™
1x USB 10Gbps Type-C
1x USB 5Gbps Type-A
1x USB 10Gbps Type-C
1x S/PDIF OUT
