Part Number:
911-7E06-010

Chipset:
Z790

Memória:
4x DDR5 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz até 192GB

Processador:
Intel LGA 1700 ( Intel 12ª e 13ª Geração )

Slots:
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Interface:
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G

Rede:
Intel® 2.5Gbps LAN

Formato:
ATX ( 30.5 cm x 24.4 cm )

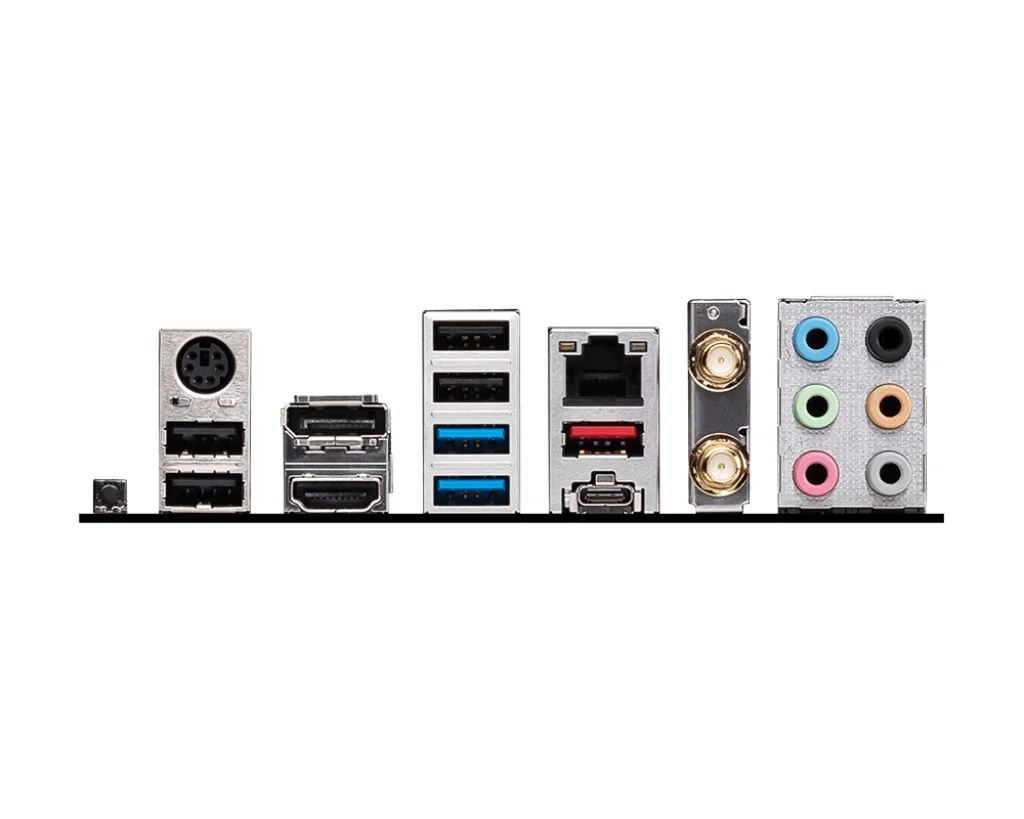

Input / Output:
1x Keyboard / Mouse
1x DisplayPort
4x USB 2.0
1x 2.5G LAN
2x Wi-Fi / Bluetooth Connectors
6x Audio Connectors
1x Flash BIOS Button
1x HDMI
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x USB 3.2 Gen 2×2 20Gbps (Type-C)
1x USB 3.2 Gen 2 10Gbps (Type-A)

Dimensões:
24,4 cm x 30,5 cm
